Highly efficient air-to-water heat pumps

afilia air series

HomeProductsHeat pumpsafilia air series

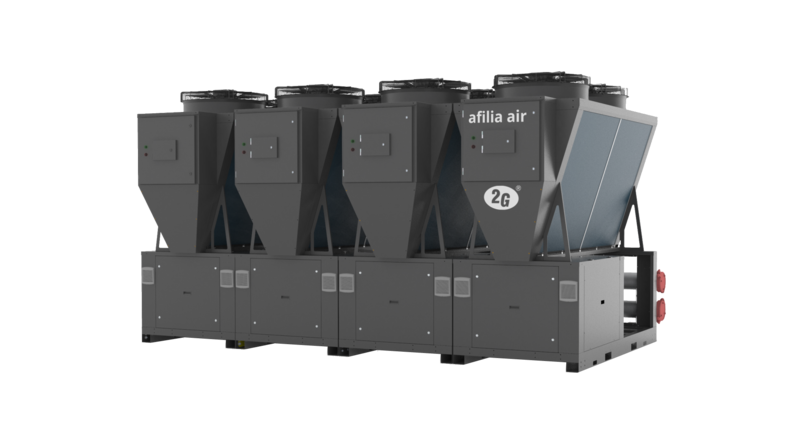

The air-cooled monoblock heat pumps of the afila air series are suitable for outdoor installation and are used for cooling and heating liquids in air conditioning applications or for ventilation units that operate in a particularly environmentally friendly manner due to the refrigerant used.

aifilia air series

Individually equipped, delivered ready for connection.

The units are designed for outdoor installation in accordance with the European standard EN 378 and its updates. Depending on the cooling capacity, several versions are available, each with one or more compressors on one or two completely separate refrigeration circuits. Thanks to a wide range of accessories, the units can be customized to meet specific requirements. All units are fully assembled, tested, and charged with refrigerant and oil at the factory. At the installation site, they only need to be positioned and connected to the hydraulic and power supply lines.

afilia-air-series plant portfolio

Heat pump Heating output
in kW		 COP Power consumption in kW Water temperature in/out
1-AEK 88.8 3.98 22.3 30/35°C
2-AEK 177.6 3.98 44.6 30/35°C
3-AEK 266.4 3.98 66.9 30/35°C
4-AEK 355.2 3.98 89.2 30/35°C
5-AEK 444.0 3.98 111.5 30/35°C
6-AEK 532.8 3.98 133.8 30/35°C
7-AEK 621.6 3.98 156.1 30/35°C

8-AEK

 710.4 3.98

178.4

 30/35°C
9-AEK 799.2 3.98 200.7 30/35°C
10-AEK 888.0 3.98 223.0 30/35°C
Heat pump Heating output
in kW		 COP Power consumption in kW Water temperature in/out
1-AEW 88,2 3,92 22,5 30/35°C
2-AEW 176,4 3,92 45,0 30/35°C
3-AEW 264,6 3,92 67,5 30/35°C
4-AEW 352,8 3,92 90,0 30/35°C
5-AEW 441,0 3,92 112,5 30/35°C
6-AEW 529,2 3,92 135,0 30/35°C
7-AEW 617,4 3,92 157,5 30/35°C
8-AEW 705,6 3,92 180 30/35°C
9-AEW 793,8 3,92 202,5 30/35°C
10-AEW 882,0 3,92 225,0 30/35°C
Heat pump Heating output
in kW		 COP Power consumption in kW Water temperature in/out
1-PEK 86.6 3.88 22.3 30/35°C
2-PEK 173.2 3.88 44.6 30/35°C
3-PEK 259.8 3.88 66.9 30/35°C
4-PEK 346.4 3.88 89.2 30/35°C
5-PEK 433.0 3.88 111.5 30/35°C
6-PEK 519.6 3.88 133.8 30/35°C
7-PEK 606.2 3.88 156.1 30/35°C

8-PEK

 692.2 3.88

178.4

 30/35°C
9-PEK 779.4 3.88 200.7 30/35°C
10-PEK 866.0 3.88 223.0 30/35°C
Heat pump Heating output
in kW		 COP Power consumption in kW Water temperature in/out
1352 133 4.46 29.8 30/35°C
1502 148 4.3 34.4 30/35°C
1612 157 4.3 36.5 30/35°C
1792 174 4.24 41.0 30/35°C
2012 195 4.29 45.5 30/35°C
2304 217 4.25 51.1 30/35°C
2312 221 4.31 51.3 30/35°C
2654 261 4.34 60.2 30/35°C
2954 288 4.14 69.5 30/35°C
3214 305 4.09 74.5 30/35°C
3514 338 3.95 85.6 30/35°C
3954 384 4.1 93.7 30/35°C
4454 416 3.96 105 30/35°C
Heat pump Heating output
in kW		 COP Power consumption in kW Water temperature in/out
1352 132 4.23 31.2 30/35°C
1502 147 4.05 34.4 30/35°C
1612 156 4.08 38.2 30/35°C
1792 173 4.03

42.9

 30/35°C
2012 195 4.05 48.2 30/35°C
2304 216 4.08 53.0 30/35°C
2312 221 4.12 53.6 30/35°C
2654 259 4.14 73.2 30/35°C
2954 287 3.92 72.8 30/35°C
3214 304 3.94 88.1 30/35°C
3514 337 3.83

9

 30/35°C
3954 382 3.92 93.7 30/35°C
4454 415 3.84 105 30/35°C
Heat pump Heating output
in kW		 COP Power consumption in kW Water temperature in/out
1201 123 4.46 30.0 30/35°C
1502 147 4.3 33.9 30/35°C
1702 174 4.3 41.4 30/35°C
2102 215 4.24 51.2 30/35°C
2502 245 4.29 59.1 30/35°C
2902 290 4.25 67.8 30/35°C
3402 344 4.31 84.8 30/35°C

your advantages

A complete package that creates added value

Containerized solutions

in different sizes and variations

Integration of spot market optimization

Flex operation and redispatch through partner

Intelligent malfunction prediction

in combination with the 2G AI "I.R.I.S."

Convenient system management

Via my.2-g.com (monthly reports, operating range monitoring)

Superordinate control

Provided by Master Control

Comprehensive control concepts

Including auxiliary drives (pumps, mixers, data collection for heat source/sink)
